This blog spends a lot of time covering Energous, the RF based at-distance wireless power company, as in my opinion it's such a good example of how to manipulate the press, public, and markets with not much more than great PR and a willingness to be 'flexible with the truth'. In their own little world there's some competition from other companies essentially doing the same thing, in a technical sense. The most prominent of these are Ossia and Powercast.
I've been asked a few times about these companies and why I don't really cover them, and the basic reasons are these - they've not been blatantly lying about technical capabilities (to date, read on for some concerns), deliberately creating multiple product lines to confuse media and consumers, or funneling money from the general public straight into the pockets of the executives. There have been enough questions though that I wanted to clarify who these companies are, what they offer, and the (minor) technical differences between them and Energous.
Powercast

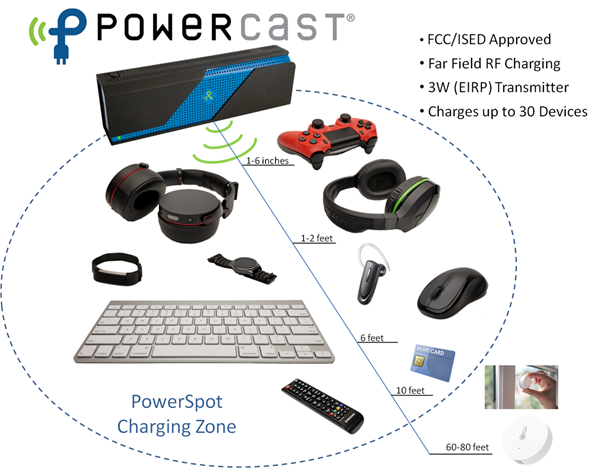

Powercast have been in operation since 2003, and have had an at-distance RF based wireless power system available and FCC approved since 2010. Like Energous they operate in the ~913MHz band, and the physics involved is essentially identical. They have a number of patents in the area. You can actually buy development kits to test them out, their website has detailed technical datasheets on all products, a simple but realistic spreadsheet for calculating actual power that can be delivered. The datasheets make it clear that they should be useful for wireless sensors and low power electronics, and never mention phones, tablets, TVs, cars, or any of the other ridiculous items other wireless power companies talk about. They don't spout techno-babble about "energy pockets" that they can't deliver on (like Energous' demonstrated inability to accurately focus in their FCC Part 18 filing).
The two product lines for receivers state up to 100 mW for the short range (over 2 days to charge a phone), and 10 mW for the long range (nearly 3 weeks for a phone), and that's maximum. More realistic is 1/10th of that, and that's reflected in the Powercast descriptions of 'microWatt to low milliWatt' levels. Powercast products are FCC Part 15 approved, which is the same rules under which your WiFi router operates - yes, it's that kind of power level we're talking about here. Could they get FCC Part 18 'unlimited power' certification? Yes, I think they could, and they might up their power output by a factor of 2 before all sorts of other safety limitations kick in. In practical terms Part 18 would buy them limited benefits with a number of restrictions, though clearly from the Energous buzz around their Part 18 approval it's worth a lot marketing wise.
So what does Energous have that Powercast doesn't? In my opinion basically nothing, except a marketing department willing to push the boundaries of truth, and an FCC Chairman willing to use his public position to promote a private company. Powercast appear to me to be a genuine engineering company, following all the rules and regulations, that has a product that you can buy, and are completely upfront and clear as to the technical capabilities and limitations.
They may not have a desperately useful consumer-level product, but that's not to say it does not have its application. With regards to phones, if someone like Apple had wanted to, they could easily have made an offer that Powercast couldn't turn down and incorporate this tech into their equipment. But they didn't, and is a firm and clear datapoint that RF wireless charging isn't really viable in the consumer space. Powercast's website lists a number of design wins that may well have specific demands that make the technology appropriate for that case. I can see it being used in industrial settings, charging large numbers of extremely low power sensors in awkward to reach locations. They mention RFID on their site, and it seems like a good fit for those conditions. Use of this technology may also grow as the number of "Internet of Things" devices increase.
In my opinion, Powercast should be commended for sticking to an honest approach to their business in the face of what must be incredibly frustrating marketing and publicity from Energous. Like many engineering led companies that focus on delivering a product and not on marketing hype, their approach probably gives them a good business but fails to deliver them the riches that the less scrupulous get. The price of a conscience?
Ossia
Ossia have been going since about 2008 and are still privately held, having raised at least $25 million from industry and Venture Capital groups including Intel. Their technology, which they brand 'Cota', is also RF based, but this time at 2.4 GHz, same as some WiFi routers. Their founder/CTO writes blog posts and technical white papers available from their website, but they are exceptionally light and free from any real information with which to analyze their products in detail. There are no products, datasheets, or evaluation kits of Ossia technology that I am aware of. (Update, In June 2019 Ossia received FCC Part 18 Approval for a system.)
Their choice of 2.4 GHz results in a smaller wavelength than the 900 MHz band (around 12.5 cm vs 33 cm), so in theory can lead to greater control over small focal zones and beamforming. At best the focus will be at least a phone sized sphere in any practical situation, but it's better than the beachball sized 'pocket' Energous have. By creating a large phased array of many small transmitters, and sending the right signal to each, a beam could be steered with reasonable precision - their 'ceiling tile' size array (pictured above, from here) could have 10 by 10 emitters each spaced at half a wavelength, and according to this article is closer to 16 by 16, so 1/3 wavelength spacing.

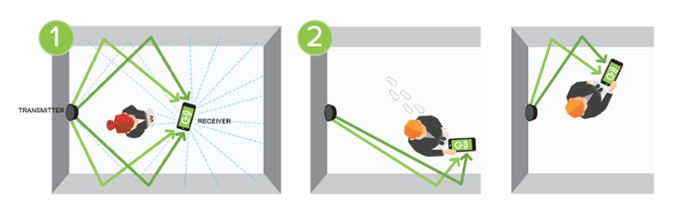

Larger arrays mean greater control, I covered some of the maths behind this here. Ossia claim this allows them to be much more precise in targeting the receiver, and 'bounce' signals around the room so that direct line of sight isn't needed. The image below from Ossia shows this in operation, with the receiver sending out a location signal about 100 times a second. This is a pretty well known engineering technique, sometimes called time-reversal, so under the right conditions it will work. It does not, however, reduce the size of the smallest possible focal zone, remove safety limits, or increase the amount of power legally transmittable.
Under Part 15 rules, Ossia can still only transmit as much power as Powercast, which means the entire system is just a more precise way of delivering microWatts to low milliWatts and leaves phone charging as an impossibility. Much of Ossia marketing material in the last few years has made it clear they're looking at similar low power situations as Powercast. Their statements are sometimes questionable, for example that 2.4 GHz is 'safer' than 5.8 GHz, can allow more precise targetting, and won't interfere with WiFi. I wonder if they'd say the same now that Energous have moved from 5.8 GHz to 913 MHz?
What about Part 18 and 'unlimited power'? There's no reason that Ossia can't do this, and once again will be limited not by transmit power, but the various safety restrictions, which like Powercast means perhaps a factor of two increase in power delivered. Why haven't Ossia done this, as it's not a complex set of tests to go through? While the FCC have not made specific statements on this, it seems they are unwilling to give Part 18 certification on wireless power devices in the 2.4 and 5.8 GHz ranges. Energous started at 5.8 GHz, but rapidly moved to 913 MHz when they repeatedly failed to get FCC approval in 2017, skipping 2.4 GHz entirely (there are limited frequency bands that are available in Part 18).
One school of thought is that the FCC isn't allowing Part 18 at 2.4/5.8 as they are the main WiFi bands, and that communications will suffer interference, so the options left are 913 MHz and ~25 GHz. Another is that the FCC isn't allowing 'unbounded' energy above a certain level - that you need control of that region of power, a peak with clearly defined edges. This would mean charging would have to happen within the near field, or at best at the near/far field boundary. No matter what your technology, that is set by the laws of physics - basically your frequency and size of transmitter are all that matter. Bigger transmitters are less practical but will allow you to push that boundary out further. Higher frequencies lead to more precise control over the beam and spot due to the smaller wavelength, as well as more transmitting elements in the same space leading to precision.
While Ossia have been playing by the rules and not putting out highly misleading marketing, I've been disturbed by some of their recent press. This article looked at both Ossia and Energous, and reached the usual level of in-depth analysis by a tech journalist that I'm used to (i.e. none). At first, Ossia demonstrate a transmitter with 10 Watts of output power - that's clearly well beyond Part 15 limits, and matches the 10 Watts of the Energous Part 18 transmitter.
"The maximum range is somewhere around 30 feet, but at that distance you can only receive a very small amount of power. Within 6 feet of the transmitter, you’ll get somewhere around 1 watt from the 10 watts being transmitted. At longer distances, you might expect 100 or perhaps 200 milliwatts, which isn’t enough to charge up a smartphone, though it can slow down the discharge."
Since they don't have Part 18 approval, that device needed to have a clear notice that it was not FCC approved and is not available for sale. I wonder if they had it and the journalist simply failed to notice? I also find their numbers disturbingly high - remember Energous transmits 10 Watts to get 30 mW at 90 centimeters, are Ossia really getting 33 times the power at twice the distance? That implies some massive directionality and antenna gain, and regions of space between transmitter and receiver going well over safety limits like SAR and MPE.
They then go on to talk about safety:
“We have established that this technology achieves the same level of safety as Wi-Fi and Bluetooth, so there is no issue with exposing people.”
This is bordering on deliberately misleading, having talked about the power levels with a non-approved device, (which seem to be vastly beyond anything realistic even under Part 18), to then go on to talk about safety numbers from WiFi type equipment of Part 15. Poor journalism may be to blame here, but I don't see Ossia rushing to correct it. I've refrained from talking about Ossia too much as they had not been making outrageous claims, or deliberately confusing the press and consumers by talking about two very different products in subsequent sentences, and allowing the listener/reader to assume they are the same. If they keep this up, in all fairness to Energous, I'll need to start covering them in the same way. Ossia, please don't make me do that, I've little enough time as it is to write...
Summary
There are at least two other RF based wireless power companies out there besides Energous. One of them has had an approved device on the market for years, but has minimal traction in the consumer market. The other seems to be trying a more technically sophisticated version of the same thing, but are now watching Energous getting away with very misleading marketing. Both are limited by the laws of physics, and safety rules, that mean powering phones or any other sizeable devices is out of reach. Despite that, tech journalists will continue to publish puff pieces on how wireless power for phone charging is just around the corner.
I can't blame companies who follow the law from trying to get favourable coverage. The tech press, however, need to wake up to the fact that they are now reporting on products and markets that directly affect our health and safety. Despite high profile cases like Theranos, it seems to be business as usual. The usual cursory coverage and regurgitation of company PR doesn't cut it in these situations, this isn't the latest iPhone or a dating app, and they need to step it up before something hurts more than investors wallets.
Hi, as an engineer, I like your blog a lot. It happens that I am trying out some Powercast product for charging home automation appliance. Bad choice really, given the power consumption. I was looking at Energous and taking a second thought after reading your blog. However, do you have any recommendation for technology that can charge 3 feet away for about 1.5WH of power within 12 hours? Regards.
ReplyDeleteI missed your question when you posted it, sorry for the slow response. You're asking for 130mW charging which is low for Qi or a wire, but add in the 3 feet limitation and I don't know of anything I'd recommend. Pi Charging claim to be able to do something like that with their "at a distance Qi" system but it is not released AFAIK, and Wi-Charge seem to indicate they can do it with a laser but I can't speak to effectiveness or safety there. For a well proven method, my answer is "use a wire".
DeleteRegarding the statement you had made about Ossia:
ReplyDeletebouncing time reversal beamforming "does not, however, reduce the size of the smallest possible focal zone"
By using walls & ceilings as a large reflector, you could theoretically achieve smaller focus spots than with the transmitter array alone. No guarantee there'll be more power in this smaller focus spot, so efficiency may not improve at all, but the statement as you made it as a bit incomplete.
So, yes and no. Spot size is roughly related to the size of your transmitter, the wavelength, the distance from transmitter to focus, phase control of each element, size of your element, directivity of each element (off the top of my head). By bouncing around off walls you may be able to increase the effective area of the transmitter used that would otherwise be obscured, but you're also increasing the distance travelled. Overall, I would guess it would come out in the wash in terms of focal size, total power might be slightly higher but not much. I just don't see it as a huge benefit or a game changer in focal zone size.
DeleteI'd also take this opportunity to remind people that the focal zone for Ossia RF system is likely around 5 to 10 cm across - it's at least baseball sized I think. Energous more like a beach ball.
Hi, great article! What do you think about Ossia's latest deal with Verizon and Tmobile (https://venturebeat.com/2019/05/16/ossia-teams-up-with-t-mobile-to-pilot-wirelessly-charging-asset-trackers-in-walmart-warehouses/)?
ReplyDeleteAre the concerns you raised above (mainly the feasibility to achieve sufficient power levels) is still applicable or do you think the fact that warehouse is more of a controlled environment, they may have a better chance of being successful?
Interesting article, thank you for sharing. Basically it seems Ossia are trying to do a fancier version of Powercast. It makes sense, the power requirements of RFID tags is low so it can likely be done inside FCC limits, and the large 2D nature of their array plus I assume some beamforming algorithms makes it a bit more effective in targeting. I think this low power application is where all the at-distance wireless power companies will end up, and most are already promoting IoT as their "saviour".
DeleteInteresting article. Thank you. I learned a lot.
ReplyDeleteI also read the article wrt Ossia/TMobile with interest. In future, Telcos will be able to create and will aggressively sell private 5G networks resulting from 5Gs ability to slice and dedicate bandwidth/spectrum and it will make its way into industrial private networks for companies like WalMart. One of 5G's key design attributes is its low power requirements. Given that low bandwidth IoT devices are forecasted to have lives of up to 10 years on 5G networks, why would low power wireless charging be needed at all in this environment? 10 year battery lifes
Thank you for your reply in advance.
Thanks for your comments. Prediciting the future is always tricky, but I've noticed a few trends in many markets - and that's as you find lower power sensors, transmitters, storage and more efficient batteries, there's ways to find more features that consume power, right up to "feature saturation" when it stops. At one end of this spectrum there are consumer fields where you want to cover as many options as possible because the user is both varied and not very sophisticated. At the other end is high-end industrial/commerce when the user is typically savvy, interested in very specific functions (and none in paying for extraneous functions), and very price conscious.
DeleteI think we're still in the stage where all features of IoT sensors are changing rapidly so you can assume at the high end that your current IoT sensor will be obsolete in 10 years, and you're going to have to replace anyway.
Some situations, though, have a required lifetime of 25 years plus (think military, govt, medical, buildings) where nothing changes in that timeframe and you assure supply. There you may not want a battery at all, just something that stores energy for use very briefly - sensors that only need to become active and respond occasionally, not continuously. There a brief wireless charge of many remote sensors makes sense and you do it over that long time.
So, a bit of waffling there, but basically there are use cases where this is viable, however the landscape changes rapidly and I don't see a $50b+ market with high margins, but rather a cut-throat business that's easily disrupted by new tech. IoT is in its infancy, and will take a while to sort out, and I suspect at-distance wireless charging will have its place, but it will be a small place. Many, if not most, will consider replacement of sensors networks every 10 years as just a cost of doing business.
I'll put in one more point - if the at-distance part can reduce the amount of employee time when you've got a vast operation, it's a huge money saver. That goes beyond what the technical issues are when the numbers get big enough.
DeleteThank you for replying to my question about 5G and battery power. I completely agree with your statement:"IoT is in its infancy, and will take a while to sort out, and I suspect at-distance wireless charging will have its place, but it will be a small place. Many, if not most, will consider replacement of sensors networks every 10 years as just a cost of doing business."
ReplyDeleteUnder Part 15 which class are you referring to?
ReplyDeleteCould you expand on this question? I'm not understanding what you're looking for.
DeleteCould you please give your comments on the newly achieved Part 18 FCC license for Ossia's system as this seems to change the game radically from any other player in the market.
ReplyDeleteJust for you, I decided to write just such an articvle about 11 days ago:
Deletehttps://liesandstartuppr.blogspot.com/2019/06/ossia-and-fcc-approval.html
Quick summary - it's not a game changer, it's a somewhat better version of the same nothingburger Energous served with their Part 18 approval over 18 months ago.
